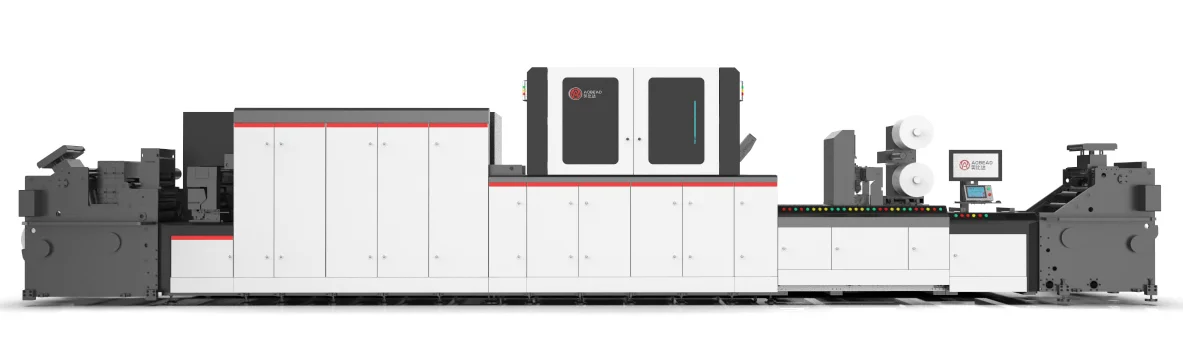

WD-330

Full-color water-based digital printing machine

Water-based full-color digital printing & digital enhancement integrated overall solution for flexible packaging.

A new vision system is added to monitor the real-time printing picture during long-time operation and achieve high yield and high-precision quality control.

The integration realizes the superposition and application of a variety of post-press processes such as cold stamping, 3D embossing effect, spot varnishing, reverse matte finishing, etc., with long-lasting gloss and providing a variety of efficiency enhancement schemes at one time;

Applications:

Tea box tea bags, wine box packaging, food packaging, environmental protection PP bags, daily chemical packaging, beverages, etc

Print function

Maximum resolution:600*600dpi &600*1200dpi

Maximum Printing Speed:20m~30m/min (depending on the material of the substrate)

Grayscale Grade:Level 4

Ink droplet volume (pl):3.2/4.8/10

Maximum Feed Width:350mm

Maximum Printing Width:330mm

Material Thickness Dimensions:0.012~0.5mm (depending on the material of the substrate)

Material Type:12-80umPET, 12-80umBOPP, 80-350g/m coated paper, express bags, books, newspapers, etc

Scope of application:

Food and non-food flexible packaging, forward and reverse printing

Ink

Ink Type:Water-based ink

Ink color configuration:W+CMYK+Digital varnish

Ink digital cold stamping/digital varnish

Cold stamping speed:30m/min

Varnish thickness:Single row 0.03mm (optional double row 0.06mm)

Overprinting Accuracy:±0.04mm

Media system

Maximum retraction/unwinding diameter:1000mm

Maximum unwinding load:300kg

Material Transfer:Rewinding and unwinding servo control, constant tension rewinding and unwinding

Installation conditions:

Relative Humidity:40%-60% (non-condensing)

Ambient Temperature:20°C-26°C

Power:350KW

Power Supply Requirements:AC380V/50Hz/600A

Air source:0.6-0.8Mpa

Equipment specifications

Device weight:12000KG

Device Dimensions:12000mm(L)x4700mm(W)x2300mm(H)
